AI character recognition¶
Steven Fowler (see more projects here)¶
The rise of Big Data and statistical learning in the late 2000s laid the foundation of the Deep leaning in 2010s. A popular example in deep learning at this time was character recognition, however Tensorflow did not exist and scikit didn't support neural networks (if I remember correctly), so these examples were solely based on numpy - which I think was a great foundation in learning how ML and NN work.
This is my implementation of character recognition based on the MNIST dataset on only using numpy of my neural network.
What I did¶
- Create a simple neutral network (NN) using numpy
- The NN will recognize handwriting based on MINST dataset
Why¶
- Good practice and illustration of fundamental understanding of NN
- Nostalgic reminder of tutorials I did in the early 2010s
What I learnt¶
- Good reminder of the basic principles that create a NN
- Found a cool implementation of broadcasting for one-hot encoding.
Further work¶
Implement/add:
- More hidden layers - Increase prediction performance
- Convolution layers - Increase training speed and prediction performance
- Batch training - Increase training speed
- Dropout/regularization - Reduce overfitting and improve robustness
Importing and processing MINST dataset¶
There are lots of implementations to import the MINST dataset, so I modified one using TensorFlow to create my training and test data sets.
Show code
# https://www.geeksforgeeks.org/machine-learning/mnist-dataset/
from tensorflow.keras.datasets import mnist
import matplotlib.pyplot as plt
import numpy as np
# Load data
(train_X, train_y), (test_X, test_y) = mnist.load_data()
# Normalise data to over [0, 1] interval (uint8 -> float 64)
train_X = train_X / 255.0
test_X = test_X / 255.0
# Test imported data and show sample images
print("Shapes of imported data:")
print(f"X_train: {str(train_X.shape)}")
print(f"Y_train: {str(train_y.shape)}")
print(f"X_test: {str(test_X.shape)}")
print(f"Y_test: {str(test_y.shape)}")
print() # Space
# Plot examples

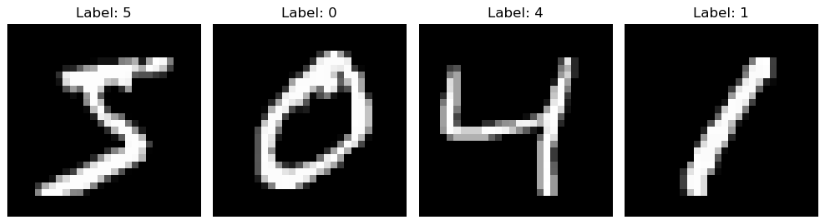

print("Frist 4 examples from MINST dataset")
plt.figure(figsize=(10, 3))
for i in range(4):
plt.subplot(1, 4, i + 1)
plt.imshow(train_X[i], cmap="gray")
plt.title(f"Label: {train_y[i]}")
plt.axis("off")
plt.tight_layout()
plt.show()
# Reshape input arrays from 3D to 2D
train_X = train_X.reshape(train_X.shape[0], -1)
test_X = test_X.reshape(test_X.shape[0], -1)
# Test imported data and show sample images
print("Input data reshaped to 2D (n x 28 x 28 -> n x 784)")
print(f"X_train: {str(train_X.shape)}")
print(f"Y_train: {str(train_y.shape)}")
print(f"X_test: {str(test_X.shape)}")
print(f"Y_test: {str(test_y.shape)}")
One-hot encoding¶
One-hot encoding converts the true label (int value) into boolean array. In this case an array of size 10 where location 0 to 9 (i.e. array[0] to array[9]) corresponds to a value of 0 to 9.
The one-hot encoded true labels allows for easy comparison of the output layer which is also an array of size 10, where a value at array location 0 to 9 (i.e. array[0] to array[9]) corresponds to the likelihood of the image showing a value of 0 to 9.
The method for encoding was copied from here (link) where the author used a cool broadcasting technique to create the boolean matrix.
Show code
# One-hot encoding
def one_hot_encoding(label_data, dimension=10):
# Use broadcasting to create boolean comparison matrix
# https://numpy.org/numpy-tutorials/tutorial-deep-learning-on-mnist/
one_hot_labels = label_data[..., None] == np.arange(dimension)[None]
return one_hot_labels.astype(np.float64)
one_hot_train_y = one_hot_encoding(train_y)
one_hot_test_y = one_hot_encoding(test_y)
print("Check data type:")
print(f"The data type of training labels: {one_hot_train_y.dtype}")
print(f"The data type of test labels: {one_hot_test_y.dtype}")
print()
print("Shape of one-hot encoded training and test arrays")
print(f"one_hot_train_y: {str(one_hot_train_y.shape)}")
print(f"one_hot_test_y: {str(one_hot_test_y.shape)}")
print()
print("Comparison of one-hot array to true labels:")
print(f"one-hot array: {one_hot_train_y[0]} -> true label: {train_y[0]}")
print(f"one-hot array: {one_hot_train_y[1]} -> true label: {train_y[1]}")
print(f"one-hot array: {one_hot_train_y[2]} -> true label: {train_y[2]}")
Activation functions¶
The ReLU (rectified linear unit) is a simple activation function that outputs 0 for negative values and maintains any positive value. This introducing non-linearity in a computationally efficient manner. Also, the derivative is simply 0 or 1 for negative and positive values respectively.
Softmax converts the layer into a probability distribution, which is great for classification problems like the MINST dataset. In this case the derivative can be estimated from the error (= predicted_y - true_y).
Show code
#################################################################
# Activation functions
#
# z: vector/array of nodes in Layer
#
#################################################################
# ReLU
def relu(z):
return np.maximum(0, z)
def relu_deriv(output):
return output > 0
# Softmax
def softmax(z):
return np.exp(z)/sum(np.exp(z))
def softmax_deriv(predicted_y, true_y):
# dL/dz = y_prediction - y_true
# dL/dz = Softmax output - one-hot encoded vector
return predicted_y - true_y
Propagation¶
The information/data moves forward through the network by the data being multiple by the weight plus bias. Then the activation function is applied. The backward propagation follows the chain rule, calculating the gradients/error that each node needs to be modified in order to improve predictions. Finally the weights and bias is updated based on learning rate (compromise of convergence accuracy and training speed).
Show code
#################################################################
# Forward and backward propagation functions
#
# w: weights applied to Layer
# b: bias applied to Layer
# z: propagation of layer forward before activation
# a: propagated layer after activation
# dz: Gradient of z
# dw: Change in weighting before learning rate applied
# db: Change in bias before learning rate applied
# alpha: Learning rate
#
#################################################################
def forward(w1, b1, w2, b2, X):
z1 = w1.dot(X) + b1 # Image data into Layer 1
a1 = relu(z1) # Relu activation of Layer 1
z2 = w2.dot(a1) + b2 # Layer 1 output into Layer 2
a2 = softmax(z2) # Softmax on Layer 2
return z1, a1, z2, a2
# Back propagation
def back_prop(z1, a1, a2, w2, X, Y):
dz2 = softmax_deriv(a2, Y) # Differentiate loss function
dw2 = dz2.dot(a1.T) # New weight based on gradient (before learning rate)
db2 = np.sum(dz2) # New weight as sum of gradient
dz1 = relu_deriv(z1) * w2.T.dot(dz2) # Differentiate layer 1, includes propagation from Layer 2
dw1 = dz1.dot(X.T) # New weight based on gradient (before learning rate)
db1 = np.sum(dz1) # New weight as sum of gradient
return dw1, db1, dw2, db2
# Update parameters
def update_params(w1, b1, w2, b2, dw1, db1, dw2, db2, alpha):
w1 -= alpha * dw1
b1 -= alpha * db1
w2 -= alpha * dw2
b2 -= alpha * db2
return w1, b1, w2, b2
Loss function¶
The Categorical Cross-Entropy (CCE) is a standard function to measure performance in classification models. It requires an input of probability distribution (which we get from the softmax function) and calculates the difference from predicted distribution and true distribution (one-hot label). Note: the log function stretches the predicted distribution resulting in the difference in value being exaggerated.
Show code
# Loss function
def cat_cross_entropy(one_hot_Y, a2, noSamples):
CCE = -np.sum(one_hot_Y * np.log(a2)) * 1/(noSamples)
return CCE
Implementation¶
The following trains the neural network by iterating over the training dataset, this is repeated epochs times. Accuracy is measured as the % of correct predictions and loss is calculated using the CCE function.
Show code
# Hyperparameters
learning_rate = 0.005
epochs = 30
hidden_size = 64
pixels_per_image = 784 # 28 x 28
num_labels = 10 # 0 to 9
# Initial guess of weights & bias
rng = np.random.default_rng(seed=67)
w1 = 0.2 * (rng.random((hidden_size, pixels_per_image)) - .5)
b1 = np.zeros((hidden_size, 1))
w2 = 0.2 * (rng.random((num_labels, hidden_size)) - .5)
b2 = np.zeros((num_labels, 1))
# Data store for plotting
data_train_loss = []
data_train_accuracy = []
data_test_loss = []
data_test_accuracy = []
# Loop epochs
for j in range(epochs):
training_loss = 0.0
training_accuracy = 0
# Loop gradient descent
for i in range(len(train_X)):
# Add axis for to use np.dot in propagation
X = train_X[i][:, np.newaxis]
Y = one_hot_train_y[i][:, np.newaxis]
# Iterate forward and back over network
z1, a1, z2, a2 = forward(w1, b1, w2, b2, X)
dw1, db1, dw2, db2 = back_prop(z1, a1, a2, w2, X, Y)
w1, b1, w2, b2 = update_params(w1, b1, w2, b2, dw1, db1, dw2, db2, learning_rate )
# Calc. performance
training_loss += cat_cross_entropy(Y, a2, len(train_X))
training_accuracy += int(np.argmax(Y) == np.argmax(a2)) # Count
training_accuracy = training_accuracy / len(train_X) # count -> %
# Testing evaluation
results = relu(test_X @ w1.T) @ w2.T # Forward propagation, no Softmax
results = np.exp(results) / (np.sum(np.exp(results), axis=1))[:, np.newaxis] # Softmax
# Calc. performance
loss = cat_cross_entropy(one_hot_test_y, results, len(test_X))
acc = np.sum(np.argmax(results, axis=1) == np.argmax(one_hot_test_y, axis=1)) / len(test_X)
if j % 10 == 0: # Reduce output
print(f"Iteration: {j}")
print(f"Train Accuracy: {training_accuracy}")
print(f"Train Loss:, {training_loss}")
print(f"Test Accuracy:, {acc}")
print(f"Test Loss: {loss}")
print()
# Update data stores for plotting
data_test_loss.append(loss)
data_test_accuracy.append(acc)
data_train_loss.append(training_loss)
data_train_accuracy.append(training_accuracy)
Show code
# Plotting
epochs_axis = np.arange(epochs) + 1
fig, axes = plt.subplots(nrows=1, ncols=2, figsize=(15, 5))
axes[0].plot(epochs_axis, data_train_accuracy, label='Training')
axes[0].plot(epochs_axis, data_test_accuracy, label='Testing')
axes[0].set_title('Accuracy')
axes[0].legend()
axes[0].set_xlabel('Epochs')
axes[0].set_ylabel('Accuracy')
axes[1].plot(epochs_axis, data_train_loss, label='Training')
axes[1].plot(epochs_axis, data_test_loss, label='Testing')
axes[1].set_title('Loss')
axes[1].legend()
axes[1].set_xlabel('Epochs')
axes[1].set_ylabel('Loss')
Figure 1. Accuracy and loss of training and testing dataset.
From the above it can be seen that:
- The training set at epoch 1 has a high accuracy - this is likely due to the large training set of 60K samples.
- Training accuracy increases and begins to plateaux around 20 epochs and the loss decreases in a nice profile.
- Testing accuracy increases at a steady rate with epochs and the loss plateaus about 15 epoch.
